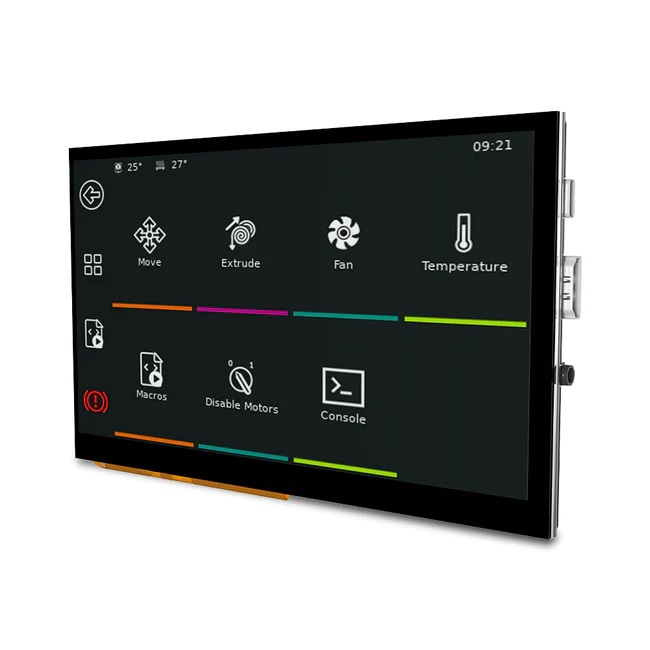

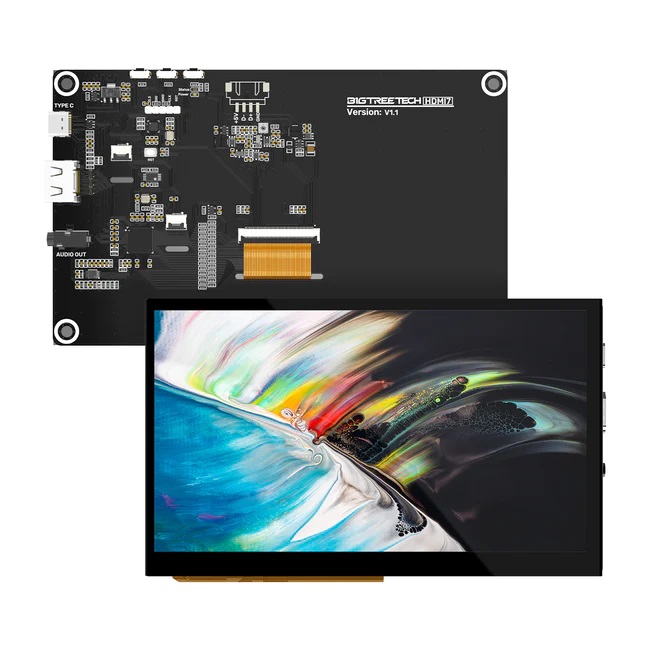

BTT HDMI7 V1.0

د.ع 99,000

شاشة مطورة لمستخدمي الطابعات الثلاثية الابعاد ونظام كليبر. تعمل على الرازبيري باي، مذربورد نوع مانتا، والحواسيب الصغيرة. تعمل مباشرة ولا تحتاج الى أي مشغلات. تربط من خلال منفذ HDMI. مصدر الطاقة من خلال منفذ USB-C. التحكم بشدة السطوع. مخارج للصوت 3.5 ملم لربط سماعات خارجية.

In stock

Key Features:

  • Plug and Play. Simply connect the screen to the device via the HDMI port and power the Type C port to make it functional without installing any drivers. This screen is great for 3d printer users to DIY their projects, and it can perfectly be compatible with the Manta series motherboard plus CB1. Let it add a more seamless visual experience to your printer system.
  • Adjustable brightness and display direction. You can increase the brightness via the Ks1 button, Ks3 for decreasing, and Ks2 for 180° display direction adjustment (Refer to the following product detail image).
  • Support audio output. Built-in audio decoding circuit, supports 3.5mm headphone jack audio output. 3.5mm audio interface transmits the audio signal without noise and current, giving you pure and delicate sound.
  • 4pin XH2.54 breakout port. The 4-pins XH2.54 breakout port allows custom connection via USB protocol, as well as screen independent power (DC 5V), giving users more DIY options.



Attribute

Value

Product name HDMI7
Screen size 7-inch
Screen resolution 1024×600
Dimensions 100×165 mm
Mounting size 100×165 mm
Power input DC 5V
Logic voltage DC 3.3V
Display panel TN
Screen viewing angle 160°
